SPECIFICATIONS

Brand Name: HSmartcam

Connection Method: Wired

Camera Sensor type: CCD

Hign-concerned Chemical: None

Origin: Mainland China

Answering Mode: hands-free

Display Screen Size(inch): 7

Display Screen Type: Color Touch Screen

Zone Input: None

Kit Configuration: One to Two video doorphone

Access Control: Inductive Card

Type: intercom system

Waterproof: Yes

Material: metal

Smart home platform: Tuya

IP Camera Interface: No

Samrt Home Interface: Yes

Installation: Wall Mounting

Resolution: 1080p

Connection Type: Wired

Certification: CE

Plug Type: Eu plug

Plug Type: US PLUG

Plug Type: AU Plug

Plug Type: UK Plug

Power: 110-240V

Model Number: AHD70

Sensor Size(Inch): 1/3

Camera: COLOR

Power: 220v

Viewing Angle (°): 140

Size: 10" TFT LCD video doorphone

Doorbell: Yes

Technology: analog

7 inch LCD Memory:: Support Max. 32GB SD card

Keypad:: Touch button

HD 1080P Camera: View Angle lens:2.1mm 140 Degree

Remote Control Support:: Iphone,Android Phone,Ipad,PC

Outdoor Camera:: Support night vision

Tuya smart app: support video door phone intercom system

Outdoor Camera Resolution:: AHD 1080P

Motion Detection:: Support

Doorbell Operating Tempe: -40℃ ~ + 60℃

Electronic Locks Connection:: Support

Doorbell Material:: Metal

Doorbell Perspective:: 140°

HD 1080P Resolution:: 7 inch TFT LCD Touch Monitor

Type: Intercom System: Waterproof: Yes

Waterproof Camera:: Support Inductive Card Unlocking

7 inch Touch Screen 2 Monitor Wireless Wifi Smart Video DoorPhone Intercom System Doorbell Camera with 1080P Wired Doorbell Tuya

Tuya Smart Wireless Wifi Video Doorbell System 1080P Doorphone Door HD Inductive Card Camera 7 Inch Touch Screen Video Intercom

Smart 7 Inch Monitor WiFi Tuya Video Doorbell Outdoor Door Bell Waterproof IP65 Intercom Inductive Card Unlock Door Phone Camera

Support Android/IOS Phone Tuya APP / Inductive Card Unlock

Full HD 1080P
* With the TUYA App, the video doorbell camera transmits 1080P HD live video and playback video to your phone for a better view around your house. This is ideal for your long-term outdoor security.

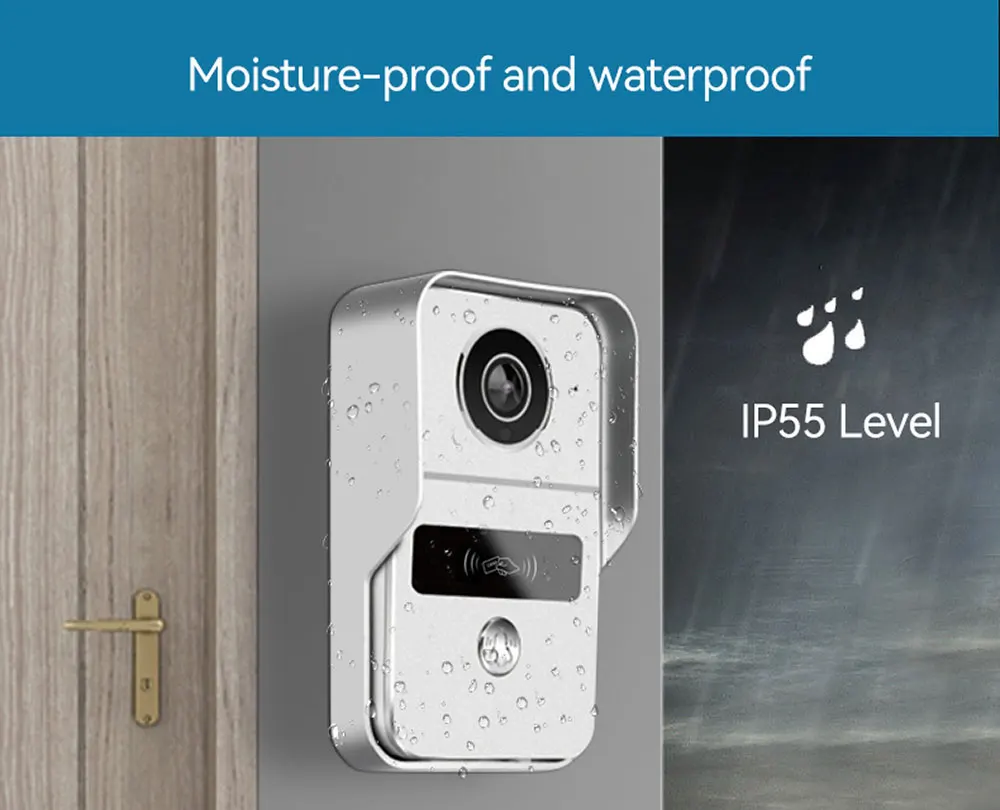

Rainproof and Night vision

Rainproof and Night vision

IP65 waterproof design,work stable in rainy,cloudy,cold and snow day. Built with 1080p HD camera, anti-oxidation aluminium alloy front panel,Rainproof, Dustproof,and Anti-vandal. IR LED for better night vision.

Compatible with Various Electronic Locks

Connect Onvif 720P & RTSP 720P IP Camera

Compatible with Onvif and RTSP cameras

Search the cameras then input username and password then add the camera to list of monitor.Display your camera’s image on your monitor screen after add these cameras

Specification Outdoor Doorbell

Outdoor Doorbell:

• Horizontal Resolution: 2MP 1080P,

• Visual angle: 140 degrees

• Night Vision: IR cut no color deviation,B/W night vision

• Panel Material: metal

• Installation: Surface mounting

• Fashionable Appearance


  ♦4pcs Nanometer IR LEDs For Night Vision

  ♦Adjustable Intercom Volume

  ♦Dual-way Intercom

  ♦Easy To Install And DIY Installation

  ♦Rust-proof Aluminium Alloy Anti Vandal Panel

  ♦IP65 Weatherproof

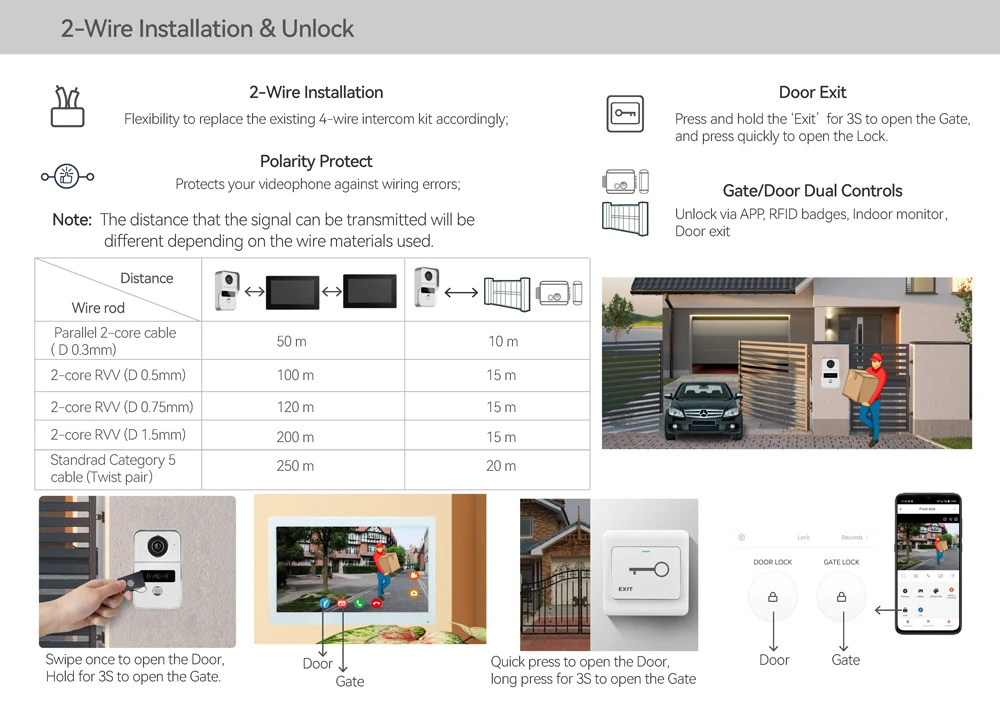

Smart Tuya Wireless Wifi Video Intercom 1080P Video Doorphone 7" Color Touch Screen Doorbell 2-wire video intercom system

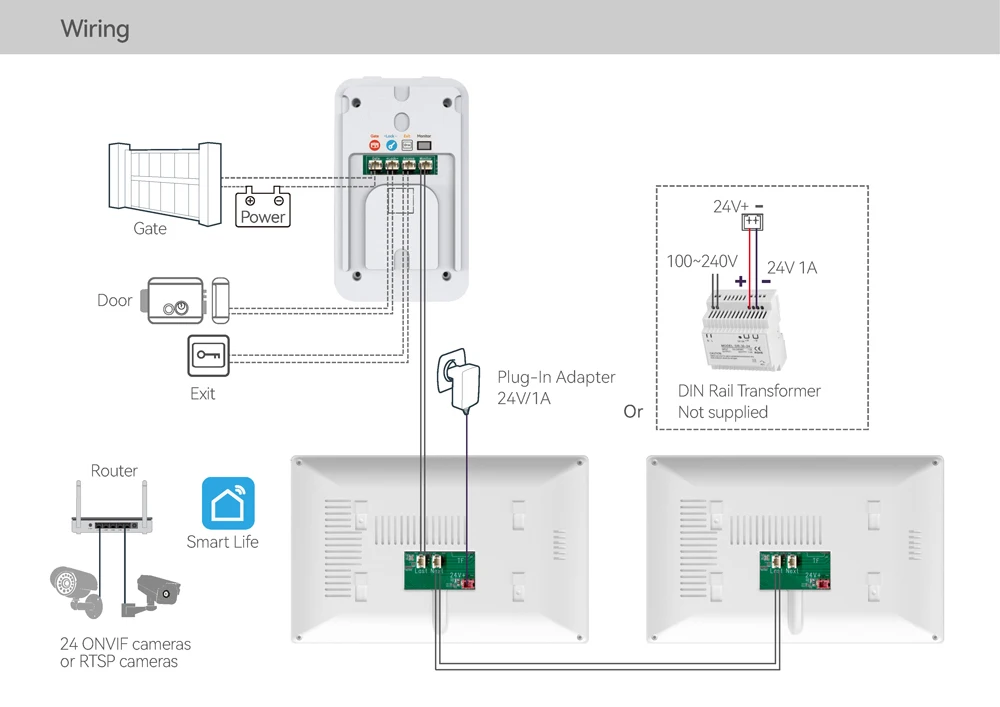

1. Use the drill bit to drill three holes. One hole is large enough to pass through the 2pin wire, use anchors if user install outdoor doorbell on brick or concrete.

2. Fix the corner kit with two screws

3.Remove the screws from the rain cover

4. The rain cover is separated from the doorbell

5. The 2pin wire goes through the hole in the wall

6. Fix the rain cover with two screws

7. Plug the rain cover on the doorbell and fix the bottom screws

8. Fix the hanging plate to the wall with two screws

9. Insert the MicroSD card to the slot of indoor monitor

10. Connect the other end of the 2pin wire to Door1 or Door2 of the indoor monitor

11. Connect the indoor monitor to a 24V 1A power adapter

12. Hang the indoor monitor to the hanging plate

Smart and Innovative IP video intercom system:

Tuya app Smart and Innovative IP video intercom system

Multiple Intercom Up to 1 doorbells can be connected with 2 indoor monitors.

Dual-Way Communication between indoor monitor and outdoor camera; Call Transfer among monitors. You don't always go downstairs open the door after install the multiple intercom.

Phone is the Key:

If you forgot your key when closed your door, use your phone to unlock. See, hear and speak to people(like courier) as if you are home, never miss any visitor.It is convenient for elder or people with reduced mobility to open the door.

Touch Sensor Button, Acrylic Wire Drawing Panel

Indoor Monitor is made of Acrylic Wire Drawing Panel and TFT Display with sensitive white light. This is very elegant design, and it adopts advanced touch technology.

Support Multi-device Connection

Micro SD card class 10 up to 256GB

Dual-way and call transfer

When someone press the doorbell,all the monitors will ring, you can answer and unlock the door with each monitor. All the monitors support call transfer or internal talking (audio only) between indoor monitors.

Support Different Working Modes

Dual-way Intercom, Call Transfer Among Monitors

This Item Is Hands-free And Available For Dual

way Communication. It Supports Communication Between Indoor Monitor And Outdoor Camera, But Also Supports Communication Between Monitor And Monitor.

Motion Detection Function

If you open the Motion Detection Function, it will record the video or snapshots automatically, and you can see what happen on your monitor, Which will keep your house more Safe.

Excellent Performance

♦7"TFT Display, Acrylic Wire Drawing Panel

♦Touch Button,With Storage

♦Room to Room Intercom

♦Door Answering, Monitoring And Unlocking

♦Adjustable Color, Brightness and volume

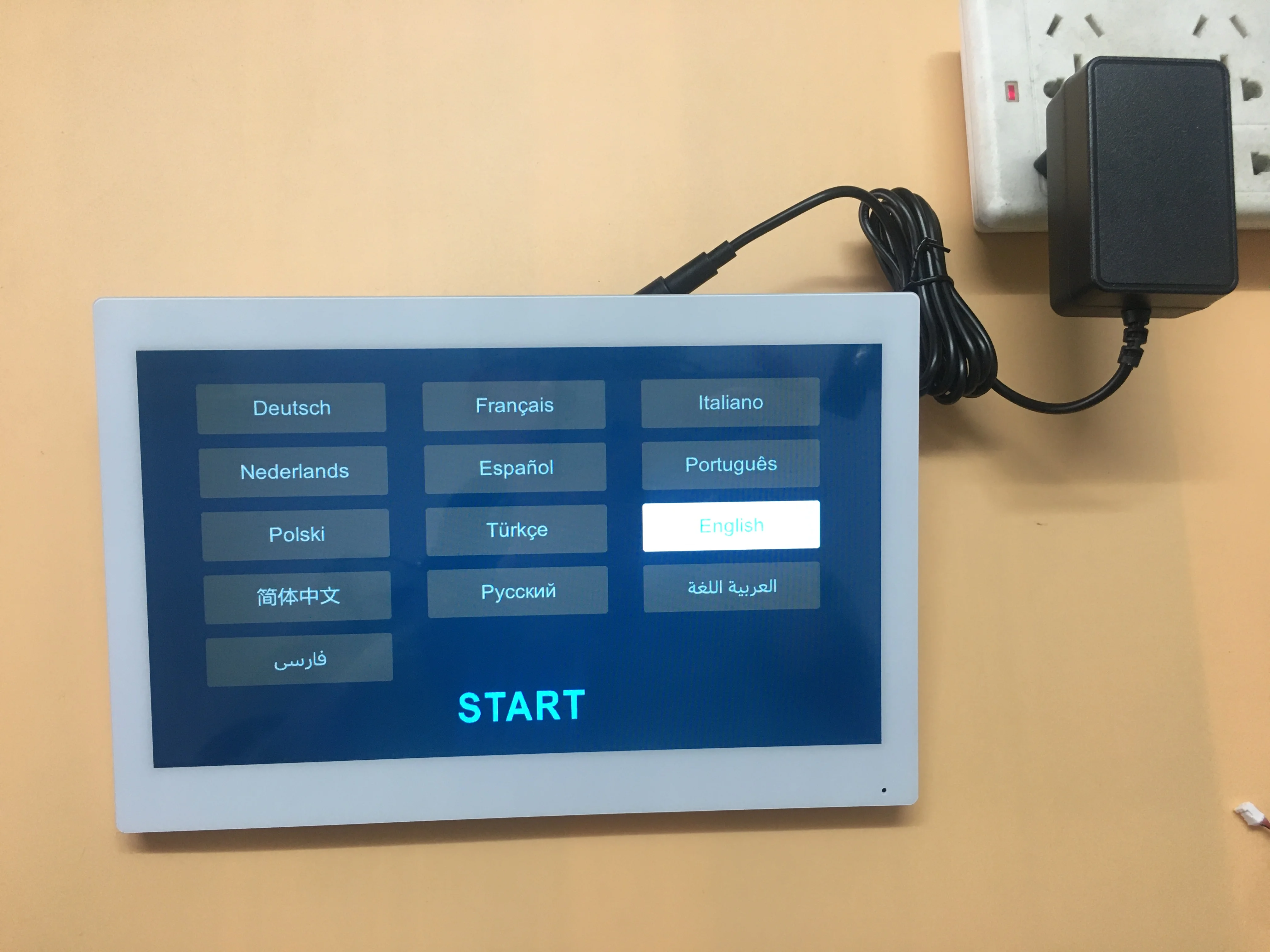

Multi-languages TUYA system

The system supports many different languages: English, Russian, Arabic, French, Spanish, German and other languages

7" Wired Video Door Phone System, Visitors Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.

7" Wired Video Door Phone System, Visitors Can Use Call Panel Calls, Then You Use Indoor Monitor Unlocking, Monitoring, Taking Pictures And Recording Video.

Package Included:

2 x 7inch color Indoor Monitor, Monitor mounting plate

1x Outdoor Doorbell Camera,mounting plate

10 x Inductive Card

1x Power adapter

5x 200mm 2 pin connector

1x Screw Bag

1x User Manual

1. Use drilsl bit to drill three holes. Through these 2pin wires, use anchors if install outdoor doorbell on brick or concrete.

2. Remove the screws from the rain cover

3. The rain cover is separated from the doorbell

4. These 2pin wires goes through the hole in the wall

5. Fix the rain cover with two screws

6. Put the rain cover on the doorbell and fix the bottom screws

7. Fix the wall bracket to the wall with two screws

8. Insert the MicroSD card into the slot of indoor monitor

9. Connect the other end to the " Last" port of the indoor monitor

10. Connect the indoor monitor to a 24V 1A Plug-In Adapter or DIN Rail Power

11. Hang the indoor monitor on the wall bracket
