SPECIFICATIONS

Lens (mm): 8mm

Lens (mm): 6mm

Lens (mm): 3.6mm

Installation: Normal

Supported Operating Systems: Windows 10

Supported Operating Systems: Windows Vista

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 7

Supported Operating Systems: Windows XP

Megapixels: 1MP

High Definition: 1080P(Full-HD)

IR Distance(m): 15

Alarm Action: FTP Photo

Alarm Action: Email Photo

Alarm Action: Local Alarm

is_customized: Yes

Power Consumption(W): 5W

Technology: INFRARed

Dimensions (L x W x D)(mm): 8.5cm*8.5cm*8.5cm

Network Interface: RJ-45 10/100Mb Ethernet Slot

Viewing Angle : 75°

Supported Mobile Systems: IOS

Supported Mobile Systems: Android

Power Supply: With POE

Special Features: Vandal-proof

Sensor: CMOS

Model Number: JN-IP403-A-POE

Type: ip camera

Power Supply(V): DC 12V

Color: WHITE

Style: Dome Camera

Brand Name: JIENUO

Audio Output: None

Sensor Brand: Sony

TF Card: None

Storage: None

Minimum Illumination(Lux): 4/1

Video Compression Format: H.264

Video Compression Format: H.265

Connectivity: IP/Network Wired

• Resolution: 720P(1280*720)  960P(1280*960) 1080P(1920*1080)
• Lens: 3.6mm lens (6mm, 3.6mm for optional)
• Support for mobile video surveillance(iOS,android)
• Support Motion Detection & Email Alert
• Support night vision
• With IR-CUT, support day/night switch
• 1.0 megapixels 25fps(Full real time) For 720P,22fps for 960P,15fps for 1080P
• 24pcs  IR Leds,15m ir distance for night vision
• Multi-screen software and CMS
•  Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
• Support motion detection







Easy to install, Easy to use





















720P , 960P , 1080P Full HD, Higher clarity





     JIENUO security IP camera captures exceptionally crisp images; meanwhile, this waterproof ip camera is more suitable for indoor and outdoor use for a wide view angle degrees. It is much better in view image quality and angle for your security purpose.















Clearer Night Vision





See everything in details with true HD. Get clearer and sharper images/videos than other ip camera. With exceptional night vision, you can see clearly even in the dark. Day or night, outdoors or indoors, JIENUO won’t stop protecting you. You can also check whether your baby is having a sweet dream at night on your mobile phones

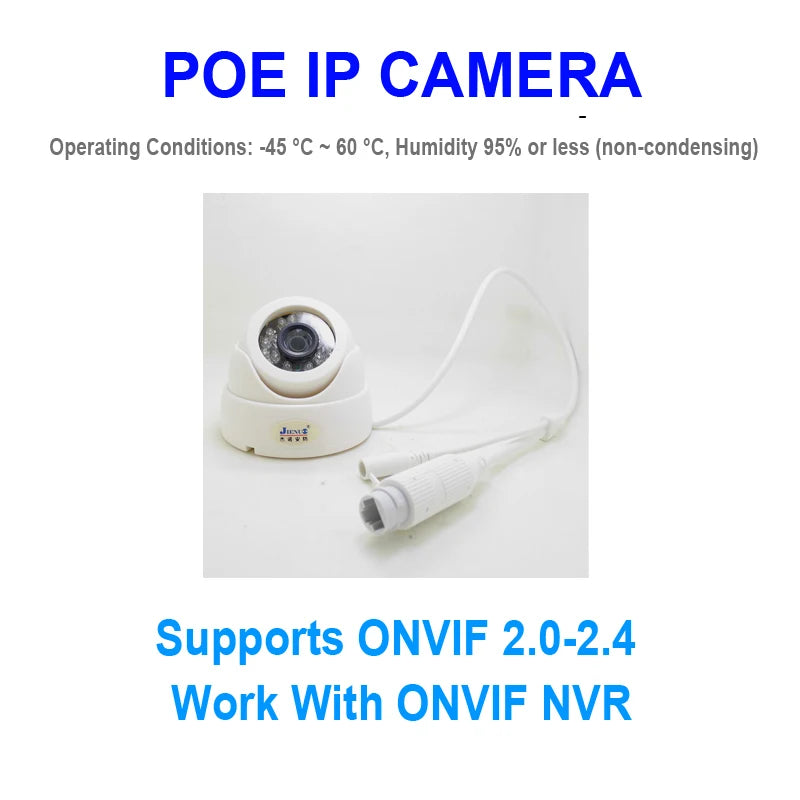

IP66 professional security surveillance camera for Outdoor/Indoor use.



Operating Conditions: -45 °C ~ 60 °C, Humidity 95% or less (non-condensing)













Instant Movements Alert





     The wirless security camera will send instant movement alert to JIENUO phone app.and Automatically send photos by email . With the full alerts, we will hardly miss any improtant events going on or happened.















Motion detection and instant APP push





Even the most vigilant homeowners just don’t have time to review hours of security footage.



Our security camera come loaded with advanced features to help you monitor smarter.



Motion detection comes as a standard feature, You won't miss any events.

































FAQ :



Q:What’s the default ip address of the camera ?



F: 192.168.1.10 Username : admin  Password : null ( empty ) !



Q: Does the camera supports Motion Detect,FTP,Email alarm, RTSP and so on ?



F: Yes ! All the IP Cameras we are selling supports these functions .



1) Please Setup the motion detection in the CMS software .



2) We suggest the Sever-U and FileZilla FTP Server to upload the video or image.



3) For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,try Gmail please ) .



4) ,RTSP URL for VLC media Player :



rtsp://$(IP):$(PORT)/user=$(USER)&password=$(PWD)&channel=$(Channel)&stream=$(Stream).sdp?real_stream



Example : rtsp://10.6.10.25:554/user=admin&password=&channel=1&stream=0.sdp?real_stream



F: What’re the ports information of the cameras ?



Q : ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567



F:Does the camera support IE ,Chrome ,Firefox and so on ?



Q: Since the plug-in problem ,for website interface IP address URL,ONLY IE supports Multi Language . Chrome,Safari just support Chinese .



For cloud server XMEYE.NET ,it supports multi language



Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “  even I can see the default ip address 192.168.1.10 in the menu .



F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.



Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !



For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .
